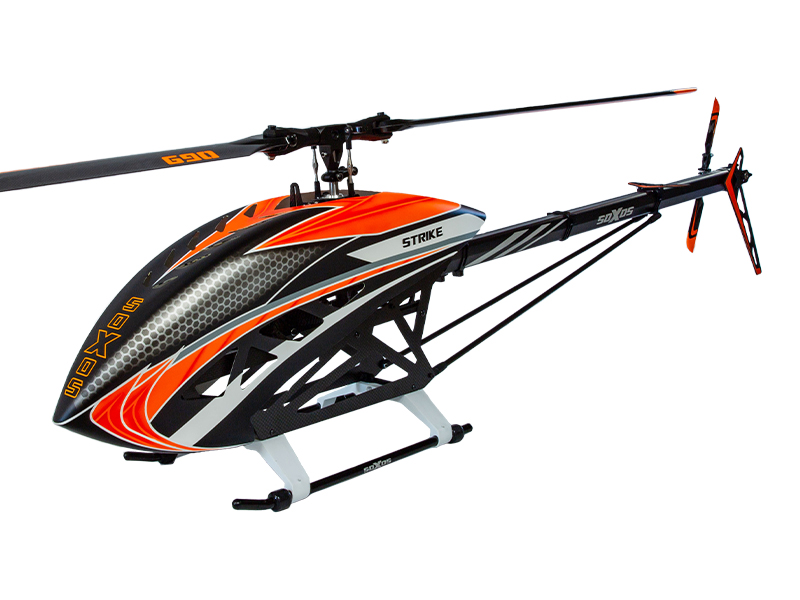

soXos Strike7.1 light combo / Orange

soXos Strike7.1 light combo / Orange
soXos Strike7.1 light combo / OrangesoXos Strike7.1 light combo / OrangesoXos Strike7.1 light combo / OrangesoXos Strike7.1 light combo / OrangesoXos Strike7.1 light combo / Orange
Article Number 8875-2
Ready for shipping
Price CHF 1599.00 incl. 7.7% Vat

Article description

soXos Strike7.1 Light (6S)

«The Power of Passion!»

«Lightness is the key!»

Since its introduction, the soXos Strike 7.1 has established itself as a robust and reliable machine for the demanding 3D pilot. The enormous strength of all components enables problem-free use of the most extreme motors. Many pilots also use it with a light setup and a 6s power system. We are now dedicating the new soXos Strike 7.1 Light to these pilots. By reworking many parts, its take-off weight, including the battery, has been reduced to less than 4 kg.

Due to its extremely low weight for a 700 size helicopter, the Strike 7.1 Light can be flown at significantly lower headspeeds, giving the pilot a completely new, calmer and more relaxed feeling of flying. Its flight envelope is not limited to leisurely and relaxed cruising around, but all common aerobatic manoeuvres can also be carried out with this lightweight model - just everything performed a little quieter, slower, and more chilled out. This makes it the ultimate fun device for relaxed after-work flights or for pilots who don't want to deal with large and expensive batteries and the associated charging technology.

Here are the main differences to the well-known Strike 7.1:
- 10 mm rotor shaft and 8 mm feathering shaft
- Adapted rotor head block, blade grips (grip size and bolt hole are still 14mm and 5 mm)
- Intermediate gear with lighter oneway adapted to the lower power system performance
- Motor pinion in Aluminum
- More generously milled, lighter carbon fibre composite side plates
- Smaller, lighter glass fibre composite canopy

The rest of the model has been taken directly from the "big" brother 7.1. The entire tail assembly also comes from the Strike 7.1, so that Strike light pilots can enjoy the same tail performance that extreme pilots value so much on the 7.1. In addition, the many identical parts also make it easier to stock up on spare parts for pilots who already own a Strike 7.1.

Variants:
The Strike 7.1 light is offered in a kit and a combo version. In addition to the kit with a colored canopy, the kit includes the matching-colored rotor blades. Available colors are: yellow, orange, green, red, white, blue and pink.

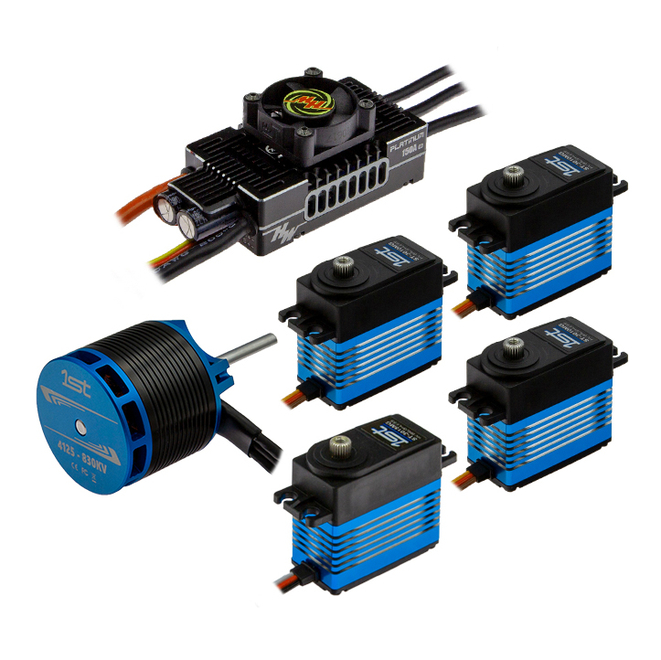

The combo version also comes with 3 swashplate servos 1st ST-3010MG and a tail servo 1st ST-3015MG, the brushless outrunner motor 1st 4125-830kV (matching the included motor pinion) and the Hobbywing Platinum V5 150A speed controller. You only need a stabilizer (flybarless) system, receiver and the flight battery with 6S / 5000 - 6500mAh to complete the helicopter.

Kit contents:
- soXos Strike 7.1 Light Kit
- 16t motor pinion for 6s motors from 800 to 850kV and 6mm or 8mm motor shaft
- Battery plate
- Aluminium servo arms suitable for all common servo types
- Canopy with matt finish in the colour of your choice
- Main rotor blades 1st-RC 690mm
- Tail rotor blades 1st-RC 105mm
- ESC: Hobbywing 150A V5
- Motor: 1st 4125-830
- Swashplate servos 3pcs.: 1st ST-3010MG
- Tail servo: 1st ST-3015MG
- Instructions

Recommended components: (not included in the combo version)
- Flybarless system
- 6S battery 5'000 - 6'500mAh (maximum drive battery size: width 62mm, height 68mm, length 350mm)
- Transmitter / receiver

Gear ratios:  (Pinion are available for 6mm/8mm motor shafts)
- 15 teeth: 10.06
- 16 teeth:   9.43 (included in kit)
- 17 teeth:   8.87
- 18 teeth:   8.38
- 19 teeth:   7.94





Technical description

- Weight without components and blades: approx. 1'880g.
- Weight of the 6S mechanics without Battery: ca. 3'250g.
- Main Rotor diameter: ca. 1,540 mm with 690mm Blades
- Rotor blade length: 685 - 690mm
- Tail rotor blade length: 105mm
- Tail ratio: 1: 5.05
- Main gear ratios: 7.94 - 10.06 (9.43 included in the kit)
- Motor Pinion are compatible for 6mm and 8mm shaft
- Maximum size of the motor: Ø 63mm, height 64mm, motor shaft length from 20 - 56mm
- Maximum dimensions of the Lipo battery: width 62mm, height 68mm, length 350mm
- Lenght: 1,340mm
- Height: 340mm
- Speed Range: min. 1100 to max. 1900 Rpm
