Heli Professional soXos Strike 7.1

Heli Professional soXos Strike 7.1
Heli Professional soXos Strike 7.1Heli Professional soXos Strike 7.1Heli Professional soXos Strike 7.1Heli Professional soXos Strike 7.1Heli Professional soXos Strike 7.1Heli Professional soXos Strike 7.1Heli Professional soXos Strike 7.1Heli Professional soXos Strike 7.1Heli Professional soXos Strike 7.1
Article Number 8874-2
Ready for shipping
Price CHF 899.00 incl. 7.7% Vat

Article description

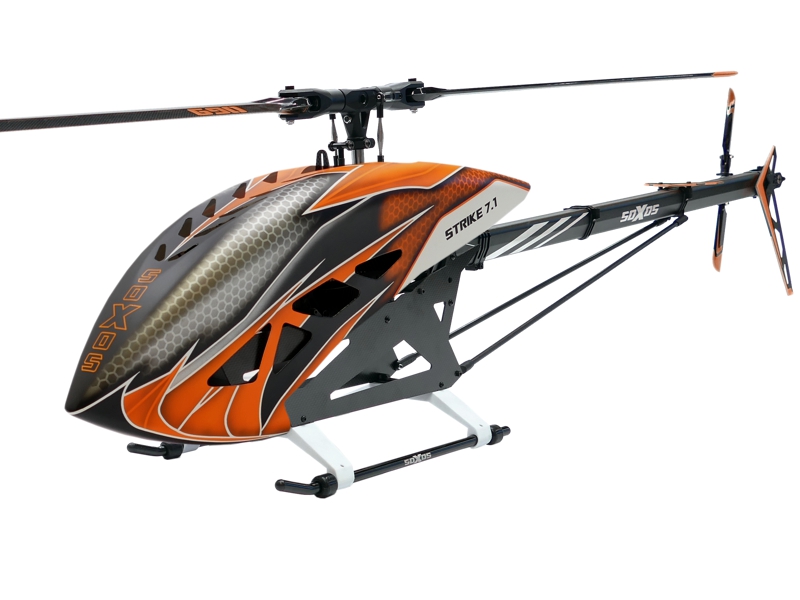

soXos Strike 7.1

«The Power of Passion!»

When developing the soxos STRIKE 7.1, the main priority was to increase the tail speed. The gear ratio is new at 1: 5.05. This means that very good tail performance can be achieved even with low RPM. As a result of the redesign, we have also made further improvements / changes such as the one-way, belt tensioner, canopy lock, rotor head damping, tail hub damping, etc. The 5 different coloured canopies, which also come with matching rotor blades, round off the new development. This enables us to fully cover your needs. The new soXos STRIKE 7.1 is not just a helicopter but is an extremely convincing product that claims absolute market leadership.







Features soXos Strike7:

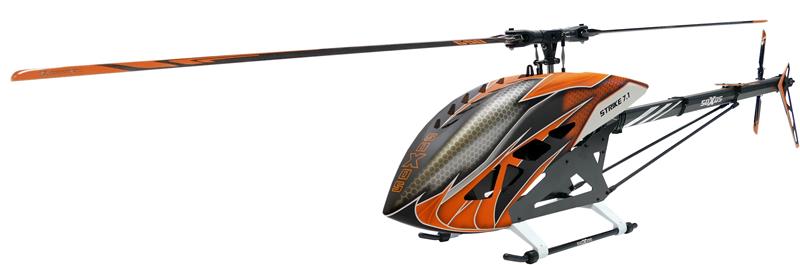

The canopies and the enclosed rotor blades are available in the following colours: a striking neon yellow, neon orange, a stylish white, a very beautiful green and a noble red. The canopies were deliberately made with a matt surface. Timely, noble, and stylish. So, you can let your personality flow into your own equipment and vary the colour of the helicopter.















Improvements / changes to the STRIKE 7:

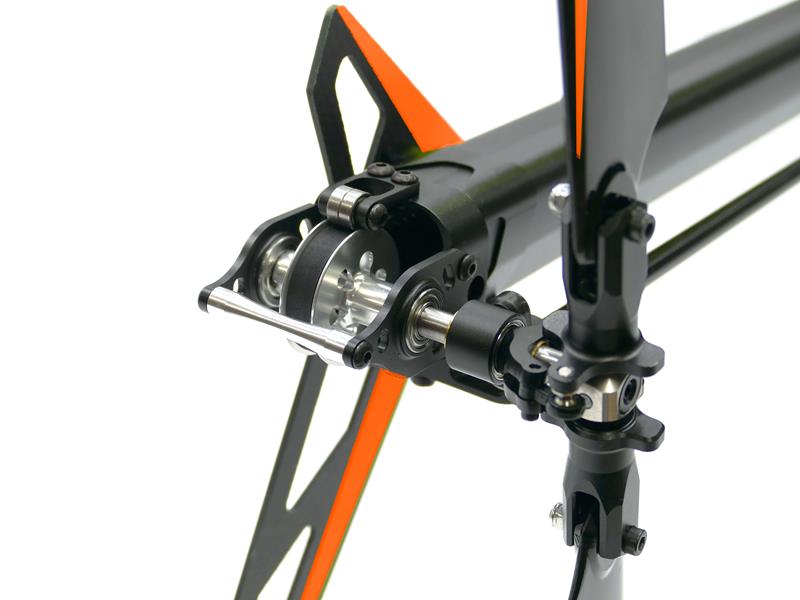

Freewheel, belt tensioner, canopy lock, redesign of the tail boom, rotor head damping,
Tail speed: 1: 5.05


Canopy Colours:

Neon yellow, neon orange, white, green, red
Canopy surface: matt
Main and tail rotor blade colours: neon yellow, neon orange, white, green, red





Construction kit content:

- soXos STRIKE 7.1 Kit
- Motor pinion 6 and 8mm for motors from 520-560KV / 12S
- Battery plate
- Aluminium servo arm suitable for all common servo types
- Canopy in the colour of your choice
- Main rotor blades 1st-RC 690mm, in the same colour as the canopy
- Tail rotor blades 1st-RC 105mm, in the same colour as the canopy
- Instructions



Kit includes:

- soXos Strike7 Kit
- Pinion 16t/6mm for Motors from 520-560KV/12S
- Battery tray
- Canopy red/yellow
- Manual



Recommended components - not included in the KIT:

Flybarless system
Regulator: 12S from 130A
Motor: 700 - 850 class with 450 - 560KV / 6mm or 8mm shaft,
Motor shaft length from 20 - 56mm
(Maximum size motor: Ø 63mm, height 64mm)
Swashplate servos 3pcs.: min.14kg / cm
Tail servo: min. 6kg / cm
12S battery 4'000 - 6'500mAh (maximum size drive battery: width 62mm, height 68mm,
length 350mm)
Transmitter-receiver



Gear Ratios  (Pinion are available for 6mm and 8mm Motor-shaft)

15 Teeth: 10.06
16 Teeth:   9.43 (included in kit for 6mm and 8mm shaft)
17 Teeth:   8.87
18 Teeth:   8.38
19 Teeth:   7.94

Technical description

- Weight without components and blades: approx. 2180g
- Rotor blade length: 685 - 710mm

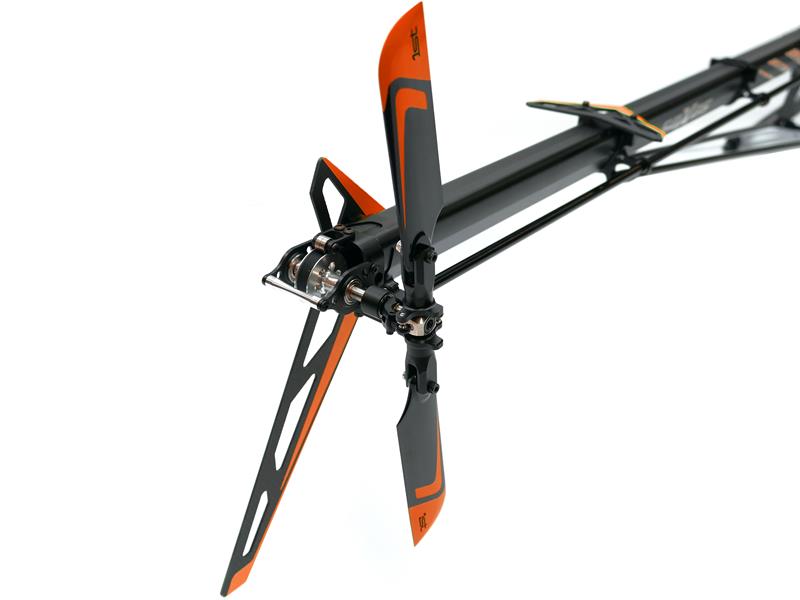

- Tail rotor blade length: 105mm
- Tail ratio: 1: 5.05
- Main gear ratios: 7.94 - 10.06 (9.43 included in the kit)
- Maximum size of the motor: Ø 63mm, height 64mm, motor shaft length from 20 - 56mm
- Maximum dimensions of the Lipo battery: width 62mm, height 68mm, length 350mm
- Main Rotor diameter: ca. 1,570 mm with 690mm Blades
- Weight of the mechanics without Battery: ca. 3,690g
- Lenght: 1,340mm
- Height: 340mm
